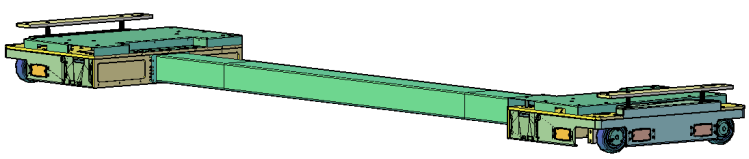

AGV Heavy Tool Mover
Vehicle With Dual Wheel Bogies
Compact, Low Profile, Tough.
Low Profile AGV to load and unload fixtures in Autoclaves.
10’x10′ Only 13″ high with jackscrews down.
40,000 lb. Capacity.
Based on the WARD 2-wheel bogie for omni wheel steering
Bogies can spin 360 degrees. Vehicles can reposition bogies in place before movement.
Front Wheel Steering, All Wheel Steering, Crab Steering

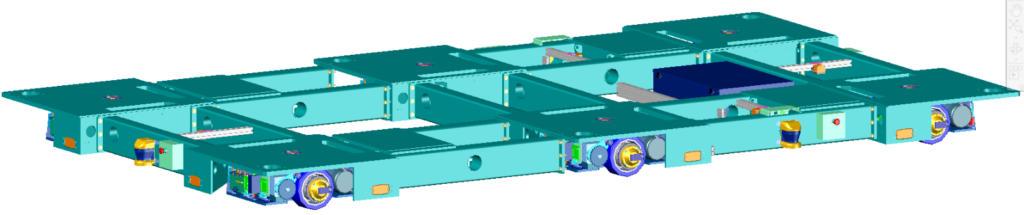

Can be sized and configured to fit your Payload: 4 bogies, 6 bogies, 8 bogies, etc.
Vehicle With Single Wheel Bogies
6’x15′ 12″ to top of surface – 25,000lb Payload Capacity
Front Wheel Steering, All Wheel Steering, Crab Steering
To learn more about Ward Ventures experience and capabilities, see below or contact us.
Portfolios – Examples of our Work
If you can think up a need, we can think up a solution
WARD is constantly conceiving and developing new vehicles Based on previous work.

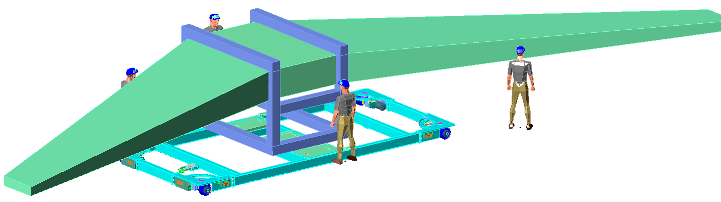

Wing Mover – Carries a wing and moves connected work platforms. Workers travel with wing for stuffing operations.

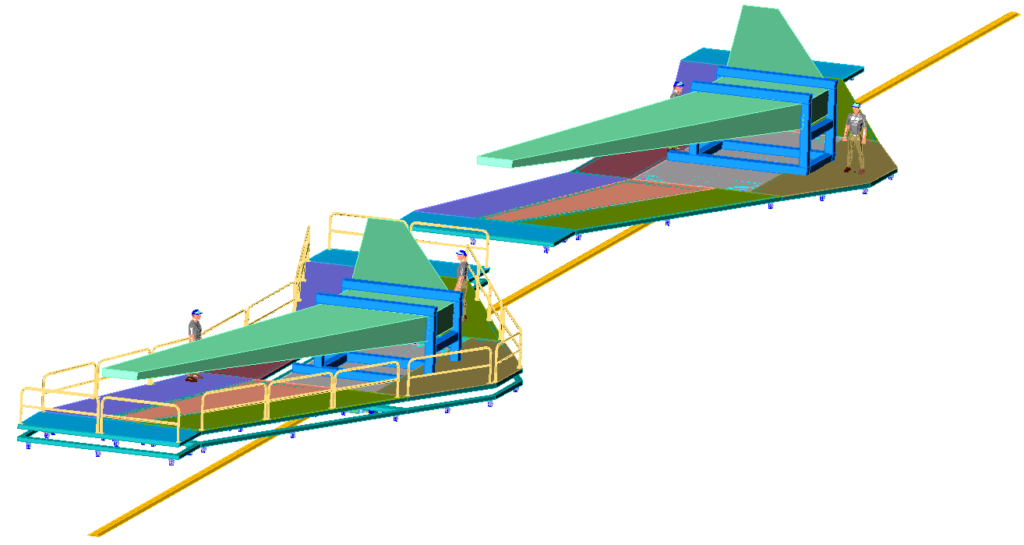

Wing Stuffing Line – AGV in a sea of connected platforms move wing and workers slowly down assembly line.

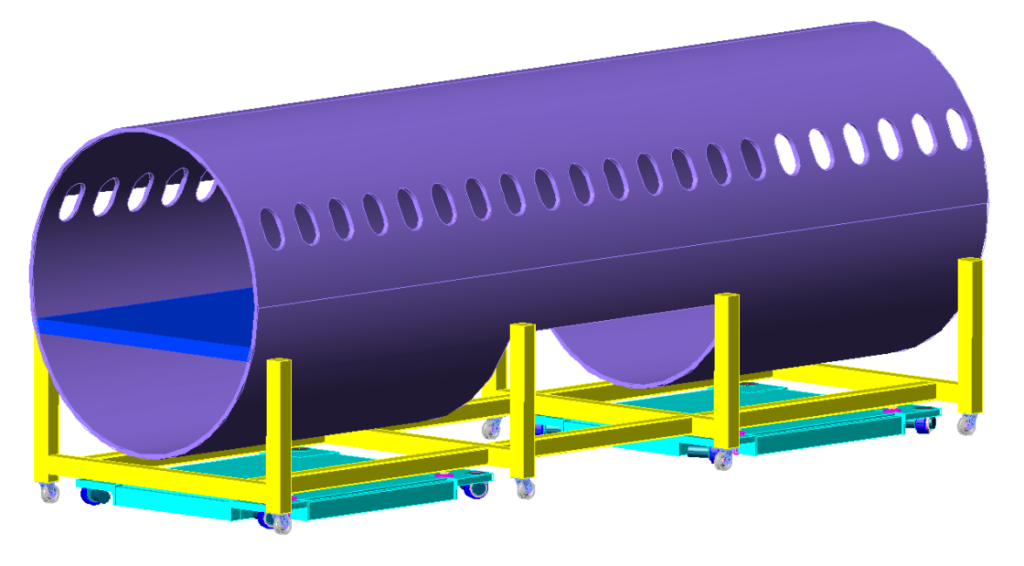

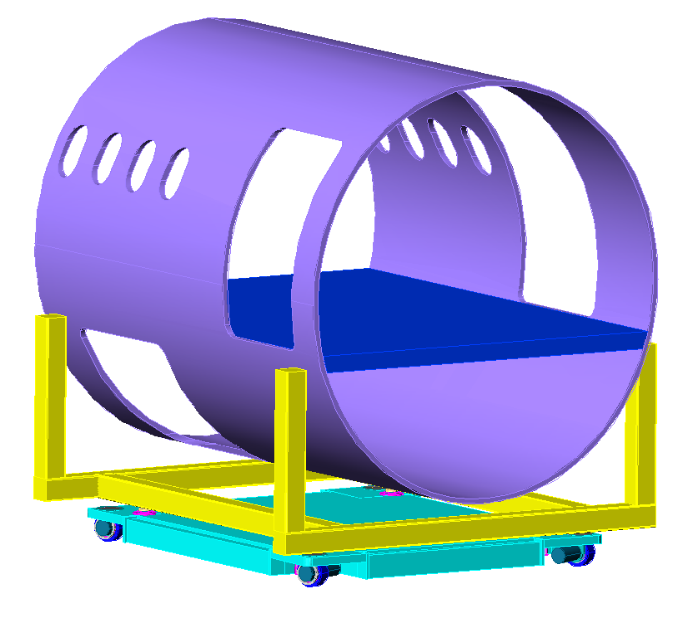

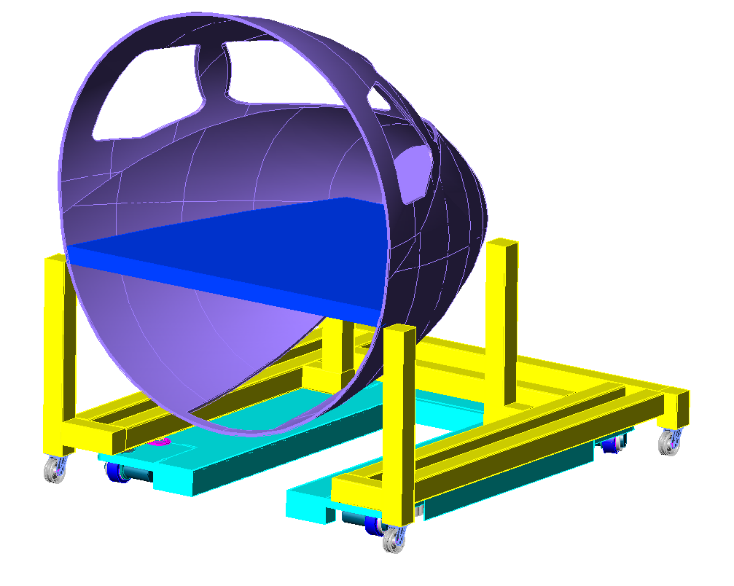

Barrel Mover – Carries Fuselage Sections and aligns them for mating.

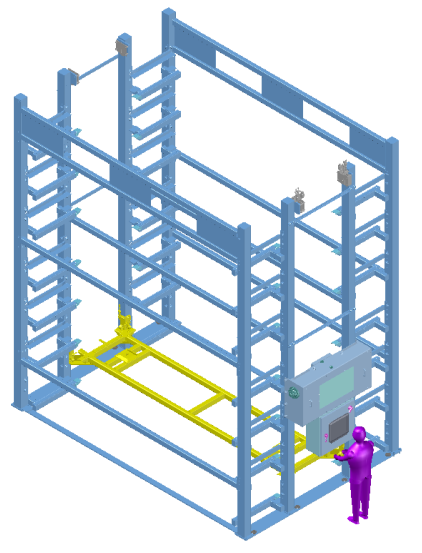

Tool Storage – Vertically Stores out-sized Lay-up Tools. Example elevator can store 6 tools left and 6 tools right. Vehicle travels on bottom level between multiple connected modules.
Heavy Lift Vehicles – 10,000 lbs per bogie – The bogies are rated at 12,000 lbs each which covers the vehicle weight plus 10,000 lbs in payload per bogie.
